Quick Clamp – Tubes
Supplied in lengths of 3.2m, in galvanised finish. Can be cut to required length on site. Available in sizes C & D. |
|
101 – Short Tee
A 90º tee connection between two tubes. For joining the top-rail to an inter post or an end post to a mid-rail. Please note: This fitting is not suitable for joining two tubes together. Supplied in galvanised finish. Available in sizes C & D. |
|
104 – Long Tee
A 90º tee connection between two tubes. For joining the top-rail to an inter post. This fitting can be used to join two tubes together. Supplied in galvanised finish. Available in sizes C & D. |
|
116 – Corner-Centre Tube
A 90º corner with a vertical tube passing through. For connecting the mid-rail to a vertical on a 90º corner. Supplied in galvanised finish. Available in sizes C & D. |
|
119 – Two Socket Cross
A 90º joint between the vertical tube and the horizontal. For connecting the mid-rail to the inter posts. Supplied in galvanised finish. Available in sizes C & D. |
|
125 – 90° Elbow
A 90º joint between the vertical tube and the horizontal. For connecting the mid-rail to the inter posts. Supplied in galvanised finish. Available in sizes C & D. |
|
128 – Three Way 90° Elbow
A 90º corner with a vertical tube. For connecting two top-rails on a 90º corner with a vertical tube. Supplied in galvanised finish. Available in sizes C & D. |
|
129 – Two Socket Cross
A 30º- 60º tee connection between two tubes. For joining the top-rail at an angle of between 30º- 60º to an inter post. Supplied in galvanised finish. Available in sizes C & D. |
|
130 – 30° to 45° Adjustable Cross
A 30º- 45º two socket cross connection between two tubes. To join the mid-rail at an angle of between 30º- 45º to an inter post. Supplied in galvanised finish. Available in sizes C & D. |
|
131 – Base Flange
To terminate a tube into a wall or similar. Please note: Not suitable for use as a base plate for the hand railing system. Supplied in galvanised finish. Available in sizes C & D. |
|
132 – Railing Base Flange
For use as a base plate for a hand railing system. Please note: Must always be positioned with the holes across the line of the railing for strength. Supplied in galvanised finish. Available in sizes C & D. |
|
133 – Plastic End Cap
For terminating a length of tubing. Supplied in grey. Available in sizes C & D. |
|
134 – Ground Socket
For use as a dig-in plate for a hand railing system. Cast into concrete and set flush with the ground. The vertical tube is held in place with the grubscrew but can be easily removed. Supplied in galvanised finish. Available in sizes C & D. |
|
135 – Clamp On Tee
For use in adding additional supports to an existing structure without the need of dismantling. Supplied in galvanised finish. Available in sizes C & D. |
|
138 – Gate Eye
Female fitting of a two part gate hinge set. Can be secured in any position on a vertical tube. Supplied in galvanised finish. Available in sizes C & D. |
|
140 – Gate Hinge
Male fitting of a two part gate hinge set. Can be secured in any position on a vertical tube. Supplied in galvanised finish. Available in sizes C & D. |
|
143 – Handrail Bracket
Wall mount bracket for the handrailing system. The tube passes through the bracket and can be secured at any point. Please Note: Not suitable for use as a structural fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
144 – Structural Side Support
Structural off-set side support for securing handrailing to walls, steps, etc. The tube is unable to pass through this fitting helping to add strength to the structure. Supplied in galvanised finish. Available in sizes C & D. |
|
145 – Non-Structural Side Support
Non-structural off-set side support for securing handrailing to walls, steps, etc. The tube is unable to pass through this fitting helping to add strength to the structure. Please Note: Not suitable for use as a structural fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
146 – Structural Side Palm Fixing
Structural side palm fixing for securing handrailing to walls, steps, etc. The flush design allows the vertical tube to be tight to the structure. Supplied in galvanised finish. Available in sizes C & D. |
|
147 – Internal Swivel Tee
Used with other fittings within the Quickclamp handrailing range this fitting creates a 360° swivel joint. Supplied in galvanised finish. Available in sizes C & D. |
|
148 – Short Swivel Tee
Used to create angles between 85º and 235º. A central vertical tube is required to join the fittings together. Please Note: Always sold in pairs. Supplied in galvanised finish. Available in sizes C & D. |
|
149 – External Sleeve Joint
This fitting is used to externally join two tubes together of the same diameter. Supplied in galvanised finish. Available in sizes C & D. |
|
150 – Internal Tube Joint
Used to internally join two tubes together of the same diameter. Please Note: Always sold as pairs. Supplied in galvanised finish. Available in sizes C & D. |
|
158 – Four Way Cross
A four way cross allowing four horizontal tubes to join at 90º to each other. A vertical tube can pass through the centre of the fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
160 – Clamp On Crossover
Used to add additional supports to an existing structure without the need of dismantling. Supplied in galvanised finish. Available in sizes C & D. |
|
161 – 90° Crossover
Used for racking systems or offset handrailing. Please Note: The tube is unable to be jointed within this fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
165 – Combination Socket
A combination fitting for use in the construction of racking systems. The fitting allows a vertical tube to be connected at 90º to two horizontal tubes. Supplied in galvanised finish. Available in sizes C & D. |
|
167 – Double Swivel Combination
Double swivel combination with the swivel connectors at 180º to each other. Each swivel has a travel of approximately 85º from the vertical in both directions. Supplied in galvanised finish. Available in sizes C & D. |
|
168 – 90° Corner Swivel
Double swivel combination with the swivel connectors at 90º to each other. Each swivel has a travel of approximately 85º from the vertical in both directions. Supplied in galvanised finish. Available in sizes C & D. |
|
169 – Swivel Flange
Allows a tube travel of approximately 85º from the vertical in both directions. Please Note: An entire structure should not be constructed from swivel fittings alone, as these would not provide sufficient stability or rigidity in the structure due to the free rotation of the fitting. This fitting is not recommended for use as a base plate for guardrailing. Supplied in galvanised finish. Available in sizes C & D. |
|

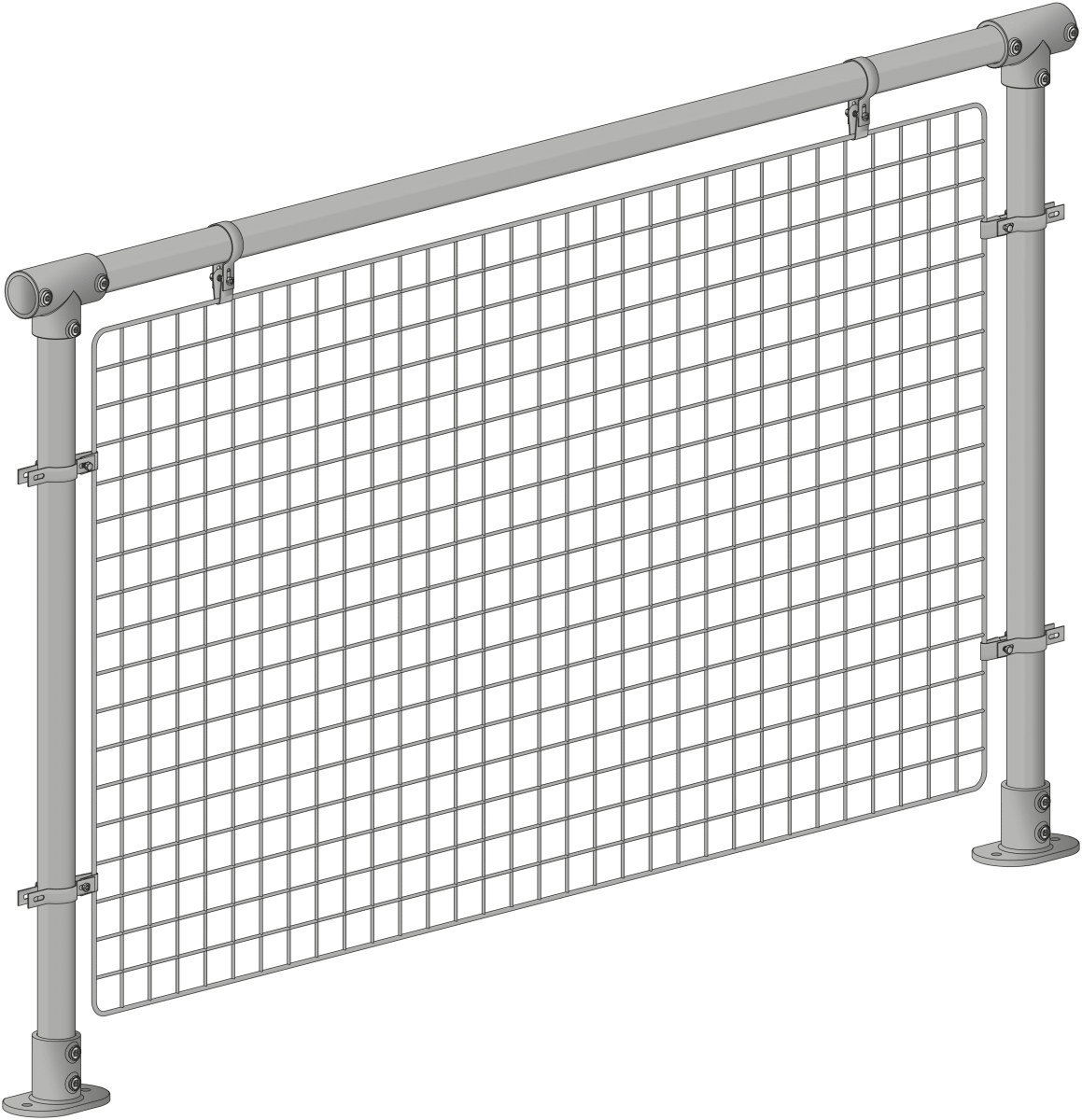

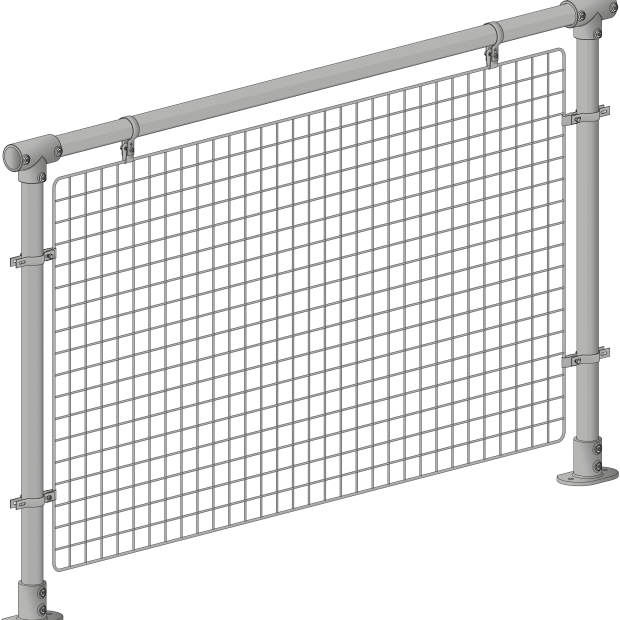

170 – Single Sided Mesh Clip
Allows mesh panels to be secured to one side of a vertical or horizontal tube. Supplied with M6 x 30mm long bolt and nut. Supplied in galvanised finish. Available in sizes C & D. |
|
171 – Double Sided Mesh Clip
Allows mesh panels to be secured to either side of a vertical or horizontal tube. Supplied with M6 x 30mm long bolts and nuts. Supplied in galvanised finish. Available in sizes C & D. |
|
173 – Single Swivel Socket
Single swivel combination. The swivel has a travel of approximately 85º from the horizontal in both vertical directions. Please Note: An entire structure should not be constructed from swivel fittings alone, as these would not provide sufficient stability or rigidity in the structure due to the free rotation of the fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
176 – Side Outlet Tee
Side outlet tee used to join three horinzontal tubes at 90º to each. Allows a vertical tube to pass through the fitting. Supplied in galvanised finish. Available in sizes C & D. |
|
179 – Locking Collar
Used to add extra support to a structure where the slip load on the grubscrew is exceeded. Supplied in galvanised finish. Available in sizes C & D. |
|
201 – Angled Single Socket Tee
An adjustable tee connection between two tubes. Used on ramps to join the top-rail to an inter post or an end post to a mid-rail. Please Note: Not suitable for joining two tubes. Supplied in galvanised finish. Available in size D. |
|
204 – Angled Long Tee
An adjustable tee connection between two tubes. Used on ramps to join the top-rail to an inter post or an end post to a mid-rail. This fitting can be used to join two tubes together. Supplied in galvanised finish. Available in size D. |
|
219 – Angled Two Socket Cross
An adjustable joint between the vertical tube and the horizontal. Used to connect the mid-rail to the inter posts. Supplied in galvanised finish. Available in size D. |
|
225 – Angled Elbow
An adjustable elbow used to join the end post to the top-rail. Supplied in galvanised finish. Available in size D. |
|
232 – Angled Railing Base Flange
An adjustable base plate for the hand railing system. Used on shallow ramps with a rake of between 4º- 10º. Supplied in galvanised finish. Available in size D. |
