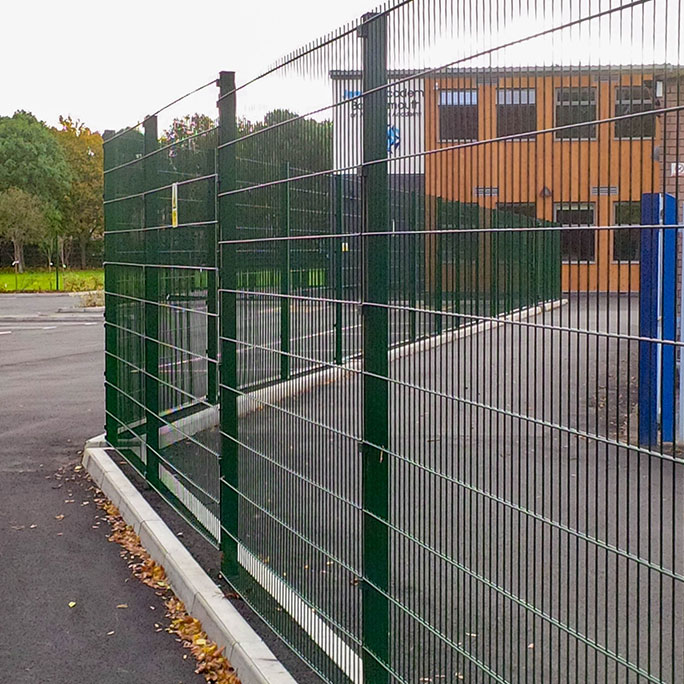

Protek 656 Clip – Twin Wire Security Fencing – Clip System
The twin-wire welded mesh design of the Protek 656 Clip system provides security barrier that is stronger than single wire mesh systems.

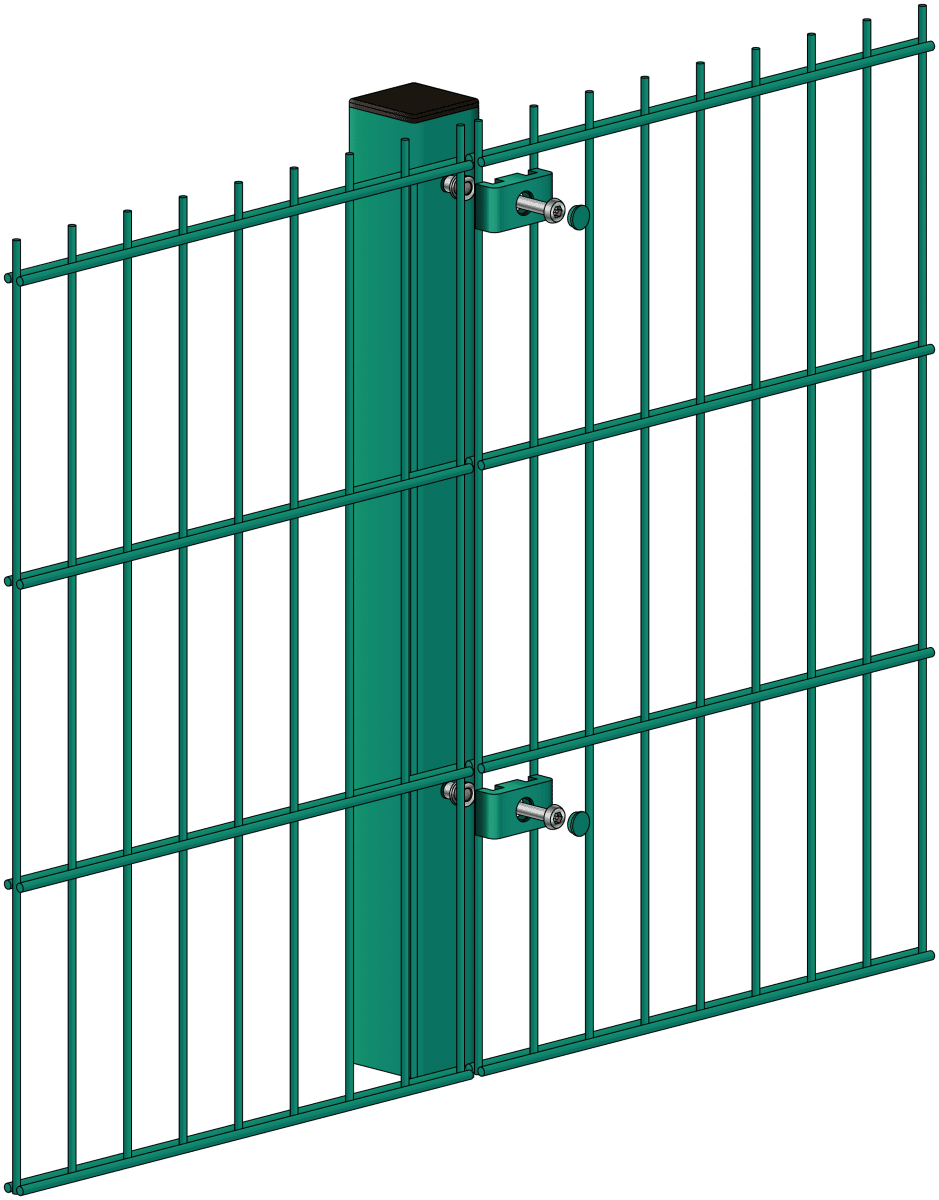

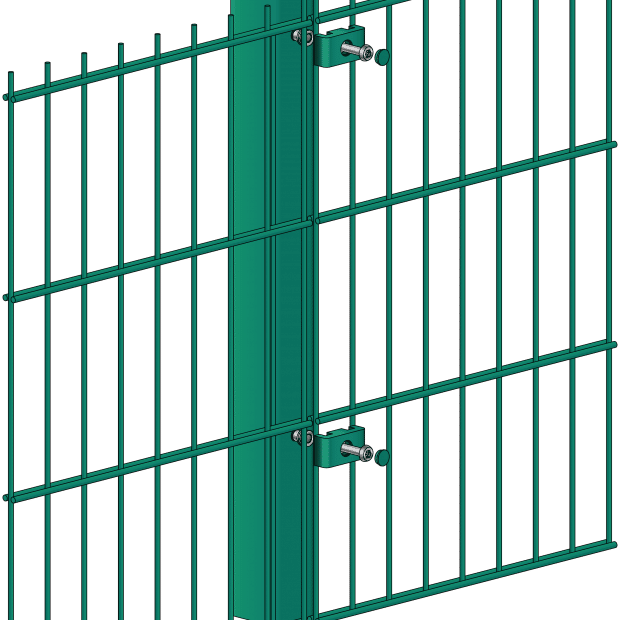

Unlike the Protek 1000 & 2000 system, Protek 656 mesh fencing panels use 6mm diameter horizontal wires (rather than single wire) either side of the vertical wire. This deeper mesh construction provides the fence line with increased strength and rigidity, as well as making it harder for intruders to cut through or climb over. As a clip system, adjoining Protek panels are held together with metal clips that are then pinned into posts using pre-drilled holes.
Available In Heights Up To 3m
The Protek 656 Clip panels are available from a height of 1m, up to a maximum of 3m for each single panel. Supporting posts are available in dig-in or bolt-down (postcrete mix available separately for dig-in posts). Bolt-down posts are suitable for anchoring into concrete, ideal for use around schools, colleges and retail parks. Protek twin-wire systems are easy to install, and individual panels can be stepped to allow the fence line to follow the contours of the ground.
High Quality – Zero Defects
Alexandra Security is one of the UK’s leading suppliers of metal security fencing, and our wire mesh is manufactured to a high standard. Protek 656 Clip mesh panels are supplied in a galvanised finish for long term rust protection, and if required a polyester powder coat finish to a colour of your choice can be applied to give extra protection and an improved aesthetic appeal. Green is our standard colour, allowing the fence to blend into the background. In urban areas, black powder coating is also a popular alternative.
Our Team Of Experts Are Here To Help
Alexandra Security can offer expert advice on the right type of security fencing for your project. All of our mesh fencing comes with a 15-year guarantee, and we can supply matching standard and bespoke gates to match all of our fencing types. Supporting CAD drawings also mean you can see and sign-off the design before committing to manufacture. Get in touch with our team today to start planning your next security fencing project.
Specification
| Nominal Fence Height (m) | Panel Size Height x Width (mm) | Post Centres (mm) | Overall Length of Post (mm) | Post Size (mm) | No. of Clips Per Post | No. of Clips Per Corner |
|---|---|---|---|---|---|---|
| 1.2 | 1,230 x 2,506 | 2,520 | 1,800 | 60 x 60 | 4 | 8 |
| 1.8 | 1,830 x 2,506 | 2,520 | 2,400 | 60 x 60 | 5 | 10 |
| 2.0 | 2,030 x 2,506 | 2,520 | 2,600 | 60 x 60 | 6 | 12 |
| 2.4 | 2,430 x 2,506 | 2,520 | 3,100 | 60 x 60 | 7 | 14 |
| 3.0 | 3,030 x 2,506 | 2,520 | 3,750 | 60 x 60 | 8 | 16 |
Subject To Change
